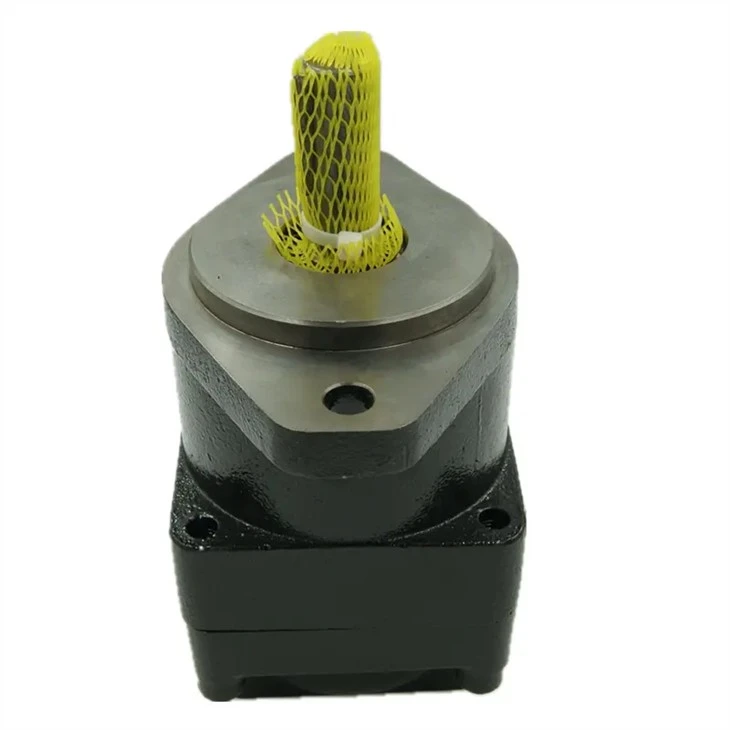

Parker M4C/M4SC Seri M4C-024-1N00-A102 M4C-024-1N00-A102 Pompa Vane Hidraulik M4C-024-1N00-A102

Model: M4C 043 1N00 Opsi A102Drainase: EksternalPemindahan: 46,5Tipe poros: Kunci (SAE B)Jenis port: Port belakangBahan - Segel: Entri koneksi Buna-NPort: 1 "SAE 3000 - UNC threadDrain hole size: SAE 4 - 7/16" UNFRated torque: 198 (at 17.5MPa) NmFlange size: SAE BRotation direction: bidirectionalOutlet size: 1 "SAE 3000 - UNC threadHigh operating pressure: 175 barRated speed: 4000RPMMerek : Parker DenisonBerat : 16kgParker Denison

product-800-139

Parker Denison M4C 043 1N00 A102 014-27081-000 Kode Pemesanan Motor Blade Hidraulik Beban Sedang Seri M4:
1. Kode M4C seri pipa drainase eksternal, kode M4C1 seri pipa drainase internal.
2. Torsi: Kode 024=0.39 Nm/bar, Kode 027=0.45 Nm/bar, Kode 031=0.55 Nm/bar, Kode 043=0.74 Nm/ bar, Kode 055=0,93 Nm/bar, Kode 067=1.13 Nm/bar, Kode 075=1.27 Nm/bar.
3. Jenis poros: kode 1=keyed (SAE B), kode 2=keyed (non SAE), kode 3=spline (SAE B).
4. Arah rotasi (tampilan ujung poros): kode N=dua arah.
5. Kombinasi port: Kode 00=Standar.
6. Seri Desain: Kode A.
7. Tingkat penyegelan: kode 1=S1 ding nitrile rubber, kode 5=S5 fluororubber.
8. Port: Kode 01=SAE port berulir SAE drain, Kode 02=4 baut flensa SAE, SAE drain dengan ulir UNC, Kode M4=4 baut flensa SAE, ulir metrik BSPP drain.

Denison
